Description

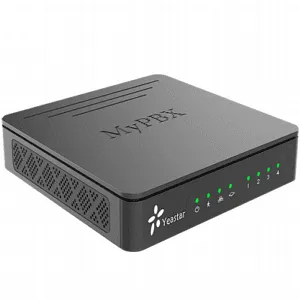

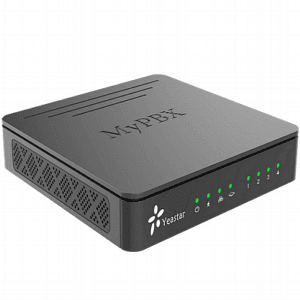

MyPBX Soho
Robust All-in-one Features
MyPBX is a powerful all-in-one system that delivers enterprise-grade functionalities and features to SMBs. On purchasing the unit, you will have all the features at hand without extra cost.
- Small and simple device for less than 32 users
- Basic call handling features
- Advanced IP-PBX features
- No licensing fees for full capacity
Easy Management
You can manage your phone system from any web browser using an intuitive and user-friendly Web interface. It’s easy to set up the system, add users, and configure the settings. Check a few boxes, choose from the dropdown list, and fill in text fields; you will know what to do when you see it.
- Plug and play set-up
- Configuration templates for IP phone batch editing
Customizable Interfaces
With module-based MyPBX, you can have flexible telephony interfaces combination. You might need FXS module to connect analog phones or fax machines; and you can decide what physical trunks you need in your system.- Flexible modular design
- FXS module for analog phones or fax machines
- PSTN and BRIÂ connectivity
Excellent Interoperability
MyPBX has been used and tested with a wide range of PBX, VoIP gateways, IP phones and ITSP. Customers have the freedom to choose from different vendors and service providers that fit their needs and enjoy the guaranteed compatibility.
- Support IP Phones from Cisco, Yealink, Polycom, Panasonic, snom, Aastra, and more
- Compatible with Asterisk, Elastix server, Trixbox, FreePBX, 3CX, and more
| Users | : | 32 |
| Concurrent Calls (Max) | : | 15 |
| Analog Ports (Max) | : | 4 |
| GSM Ports (Max) | : | – |
| UMTS Ports (Max) | : | – |
| BRI Ports (Max) | : | 4 |
| E1/T1/J1 | : | – |
| LAN | : | 1 (10/100Mbps) |
| WAN | : | 1 (10/100Mbps) |
| VoIP Trunks | : | 32 |
| IVR | : | 32 |
| Voicemail | : | 3000min |
| Protocol | : | SIP (RFC3261), IAX2 |
| Transport Protocol | : | UDP, TCP, TLS, SRTP |
| Management Protocol | : | – |
| Audio Codec | : | G711 (alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM |
| Video Codec | : | H263, H263P, H264, MPEG4 |
| DTMF | : | In-band, RFC2833, SIP INFO |
| IP Services | : | DDNS, DHCP, Firewall, OpenVPN, PPPoE, QoS, Static IP, Static NAT, Static Route, STUN, VLAN |
| One Touch Record (Manual) | : | Support |
| Call Recording (Auto) | : | – |
| Redundancy | : | – |
| MyTwins | : | Support |
| Audio In/Out | : | – |
| T.38 Fax | : | Support |
| SMS to Mail/Mail to SMS | : | – |
| Add-ons | : | – |
| Hard Disk | : | – |
| USB | : | 1 (reserved) |
| Dimensions (L × W × H) (mm) | : | 160×160×30 |
| Weight | : | 500 g |
| Power | : | AC 100-240V (DC 12V, 1A) |
Features
| Attended Transfer | Blacklist |
| Blind Transfer | BLF Support |
| Call Back | Call Detail Records |
| Call Forwarding | Call Pickup |
| Call Routing | Call Waiting |
| Caller ID | Conference |
| Define Business Hours | Dial by Name |
| DISA (Direct Inward System Access) | Distinctive Ringtone |
| DNIS | Do Not Disturb |
| Fax to Email | Firewall |
| Follow me | IP Blacklist |
| LDAP | IVR (Interactive Voice Response) |
| Intercom/Zone Intercom | Mobility Extension |
| Music on Hold | Paging/Zone Paging |
| Phone Provisioning | PIN User |
| Queue | Ring Group |
| Skype Integration | Speed Dial |
| Spy Functions | Three-way Calling |
| Video Calls | Voicemail |
| Voicemail to email | Web-based Control Panel |
